ZY72B8G-130

ZY72B8G-130

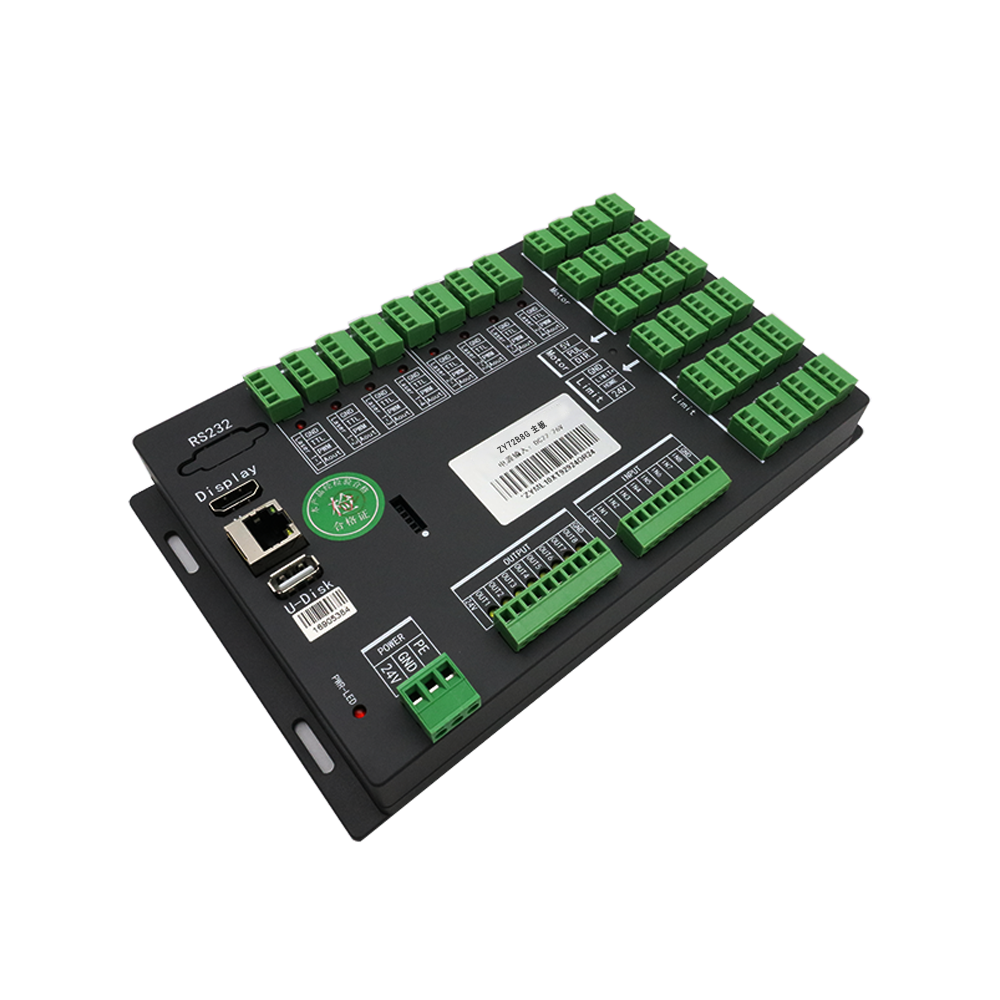

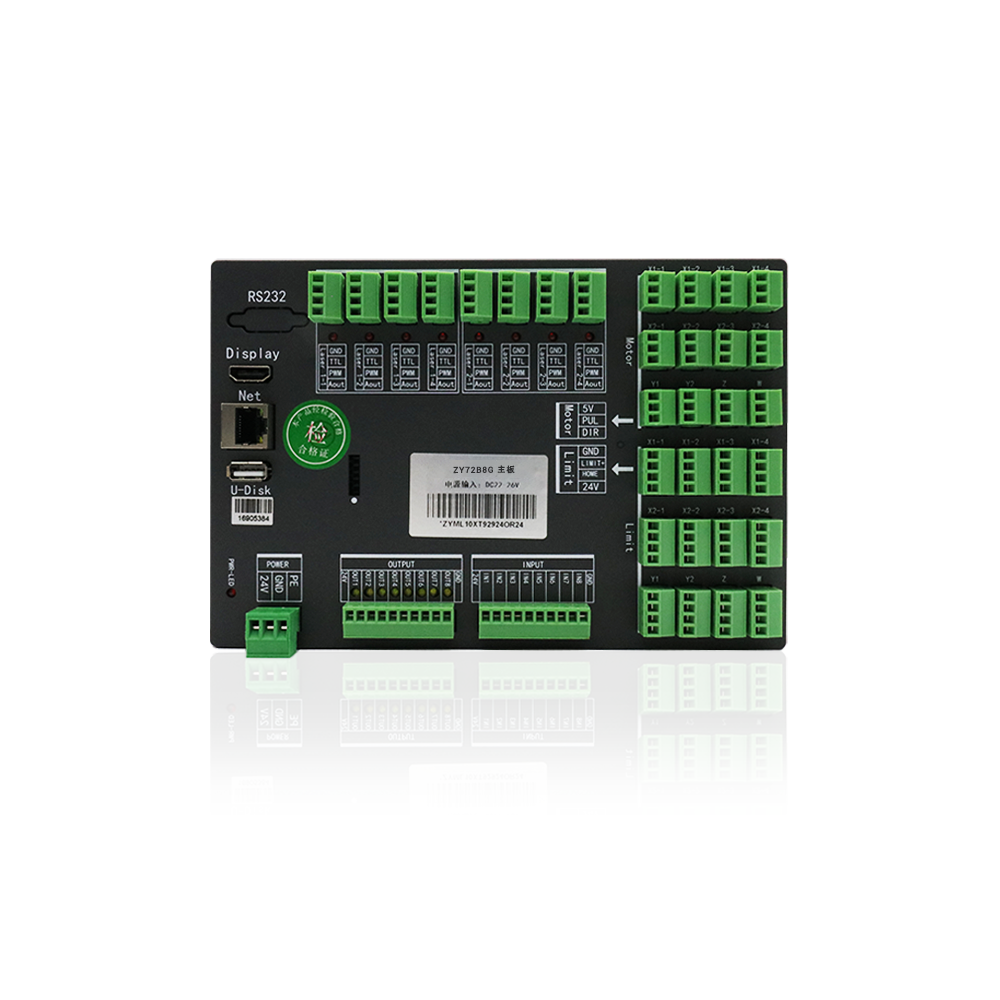

ZY72B8G-130 is an efficient panoramic vision laser cutting control system equipped with a 20 megapixel camera, supporting up to 12 axis control, suitable for ultra large format and high-precision laser cutting.


收藏
  • Parameter
  • FUNCTION

modelZY72B8G-130
Hardware

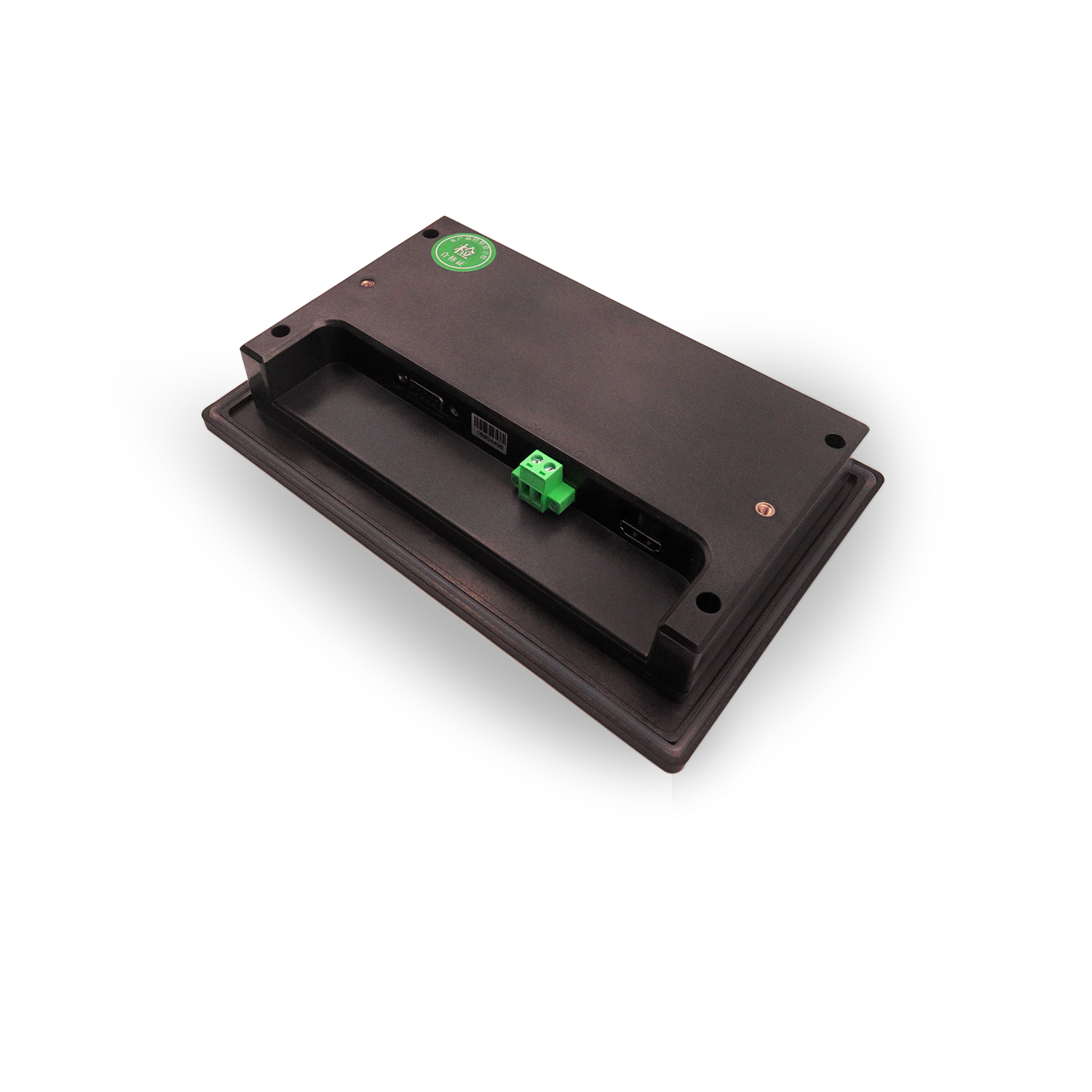

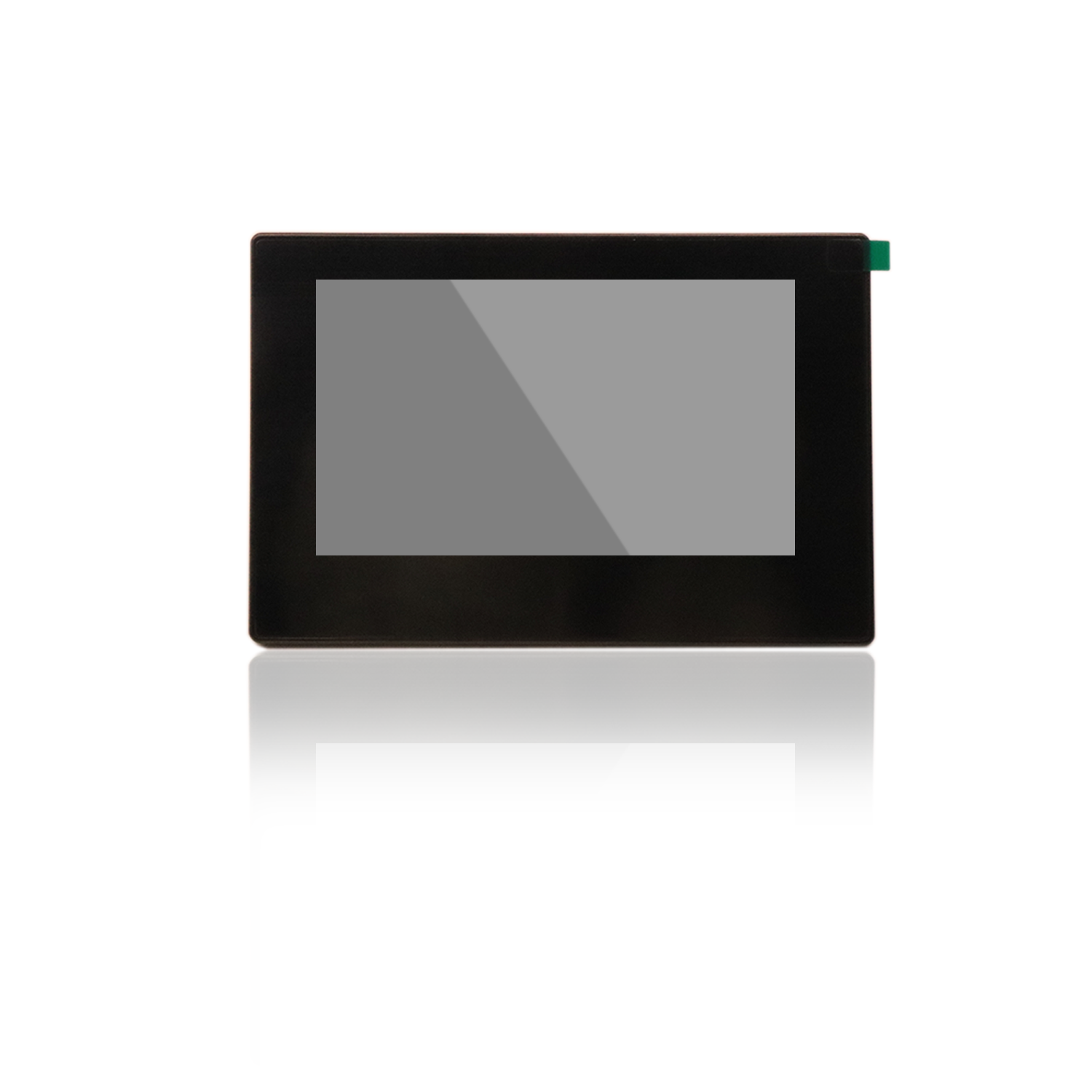

Screen7 inches
Universal output port8
Universal input port8
Number of supported platforms2
Controlled Axes12 axis
Support laser count8
Disk space (MB)5
Data transmission methodNetwork communication, USB flash drive
Support laserRF laser, CO2 glass tube laser
Function
Input/output diagnosis√
Counting function√
Processing graphics, trajectory display√
Glue dispensing function√
Z-axis autofocus function√
Power off and continuous switching function√
Automatic feeding, synchronous feeding√
Ultra large format cutting√
Rotating carving and cutting functionI won't support it
Mirror Cut√
Multilingual√
Offline pause allows for movement, shooting, and modification of layer parameters such as power and speed√
Multi head mutual shift√
Processing blowing, light blowing, blowing by layer√
Layer pause√
IO configuration√
remote control√
File Search√
Cutting machine mode, cutting ribbonI won't support it
Single/double belt processing√
Dual platform processing√






1. 1.3-megapixel or 5-megapixel industrial high-speed camera, with free choice of USB interface and gigabit network interface.


2. Camera positioning, automatic recognition template alignment and cutting.


3. Customizable camera recognition effective area.


4. Support multi template recognition, up to 100 different templates can work simultaneously.


5. Support graphic stitching for easy recognition and cutting of large graphics.


6. Supports mark cutting function, which can be applied to cutting in the advertising industry, generating templates and mark point coordinates automatically with one click.


7. Support frame cutting function, software integration with photo studio software such as Photocopying Pass, Huicai, Ouke, etc.


8. Adjustable brightness LED light source, with optional light source colors.


9. Support edge finding and cutting function.
