ZY4164G-130

ZY4164G-130

ZY4164G-130 is a visual positioning laser cutting control system suitable for non-metallic cutting, equipped with a 1.3 megapixel industrial camera, supporting 6-axis control, and capable of efficiently completing various complex laser cutting tasks.


收藏
  • Parameter
  • FUNCTION

modelZY4164G-130

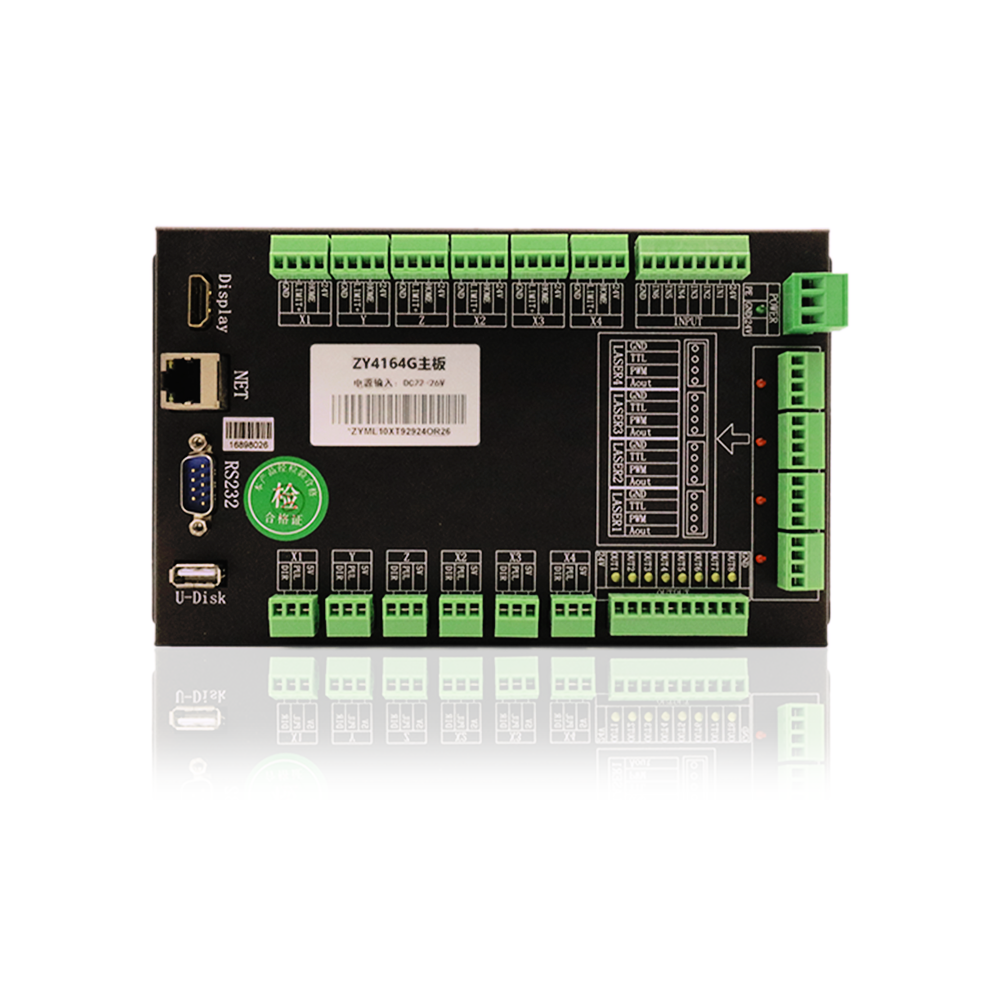

Hardware
Camera (pixel)1.3 million/5 million

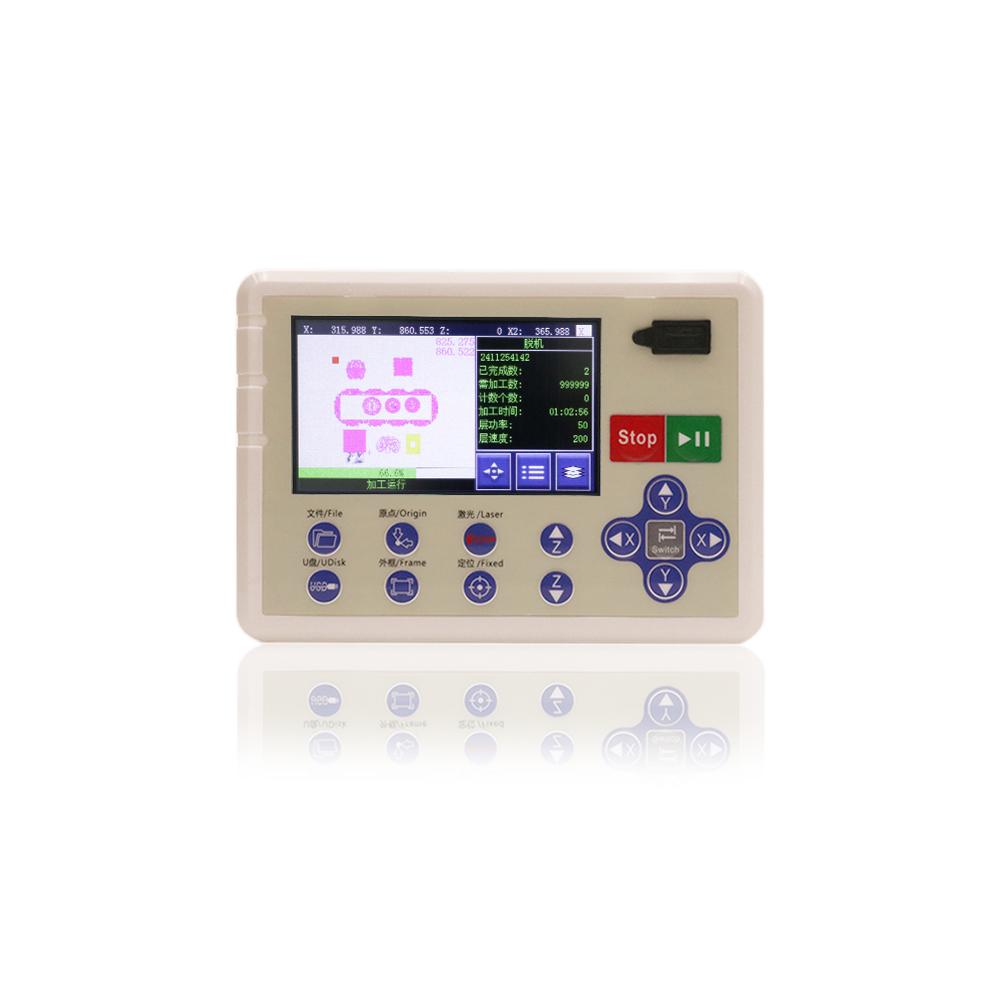

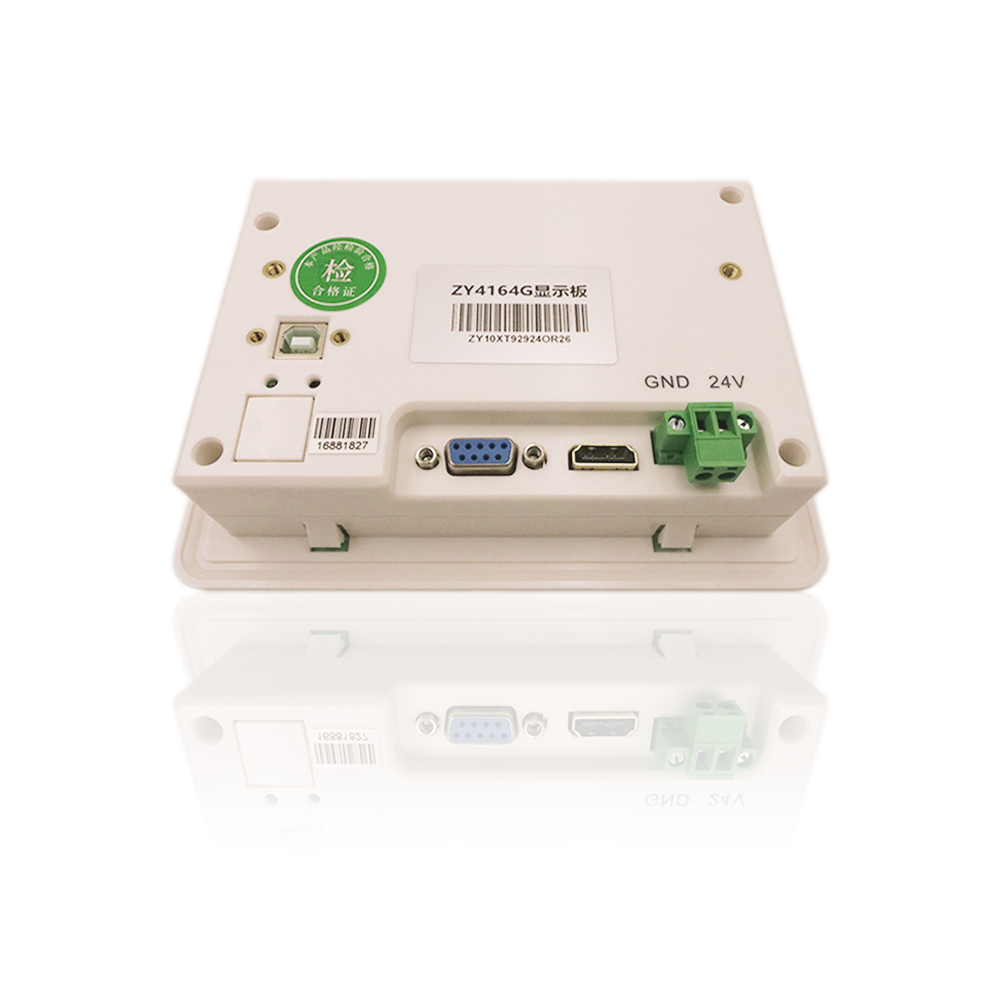

Screen4.3 inches
General output port8
Universal input port6
Number of supported platforms1
Control axes6 axes
Supports laser number4
Disk space (MB)500
Data transmission methodNetwork communication, USB drive
Support laserRF laser, CO2 glass tube laser
Function
Machine Vision√
Input and Output Diagnosis√
Counting function√
Processing graphics, track display√
Dispensing function√
Z-axis autofocus function√
Power-off shutdown function√
Automatic feeding, synchronous feeding√
Super format cutting√
Rotary engraving and cutting function√
Mirror cutting√
Multilingual√
Offline pause can move, dot, modify layer parameters such as power and speed√
Mutual movement of bulls√
Processing and blowing, light-blowing, blowing according to the layer√
Layer pause√
IO configuration√
remote control√
File Search×
Cutting machine mode, cutting webbing√
Single/Double belt processing√
Dual platform processing×

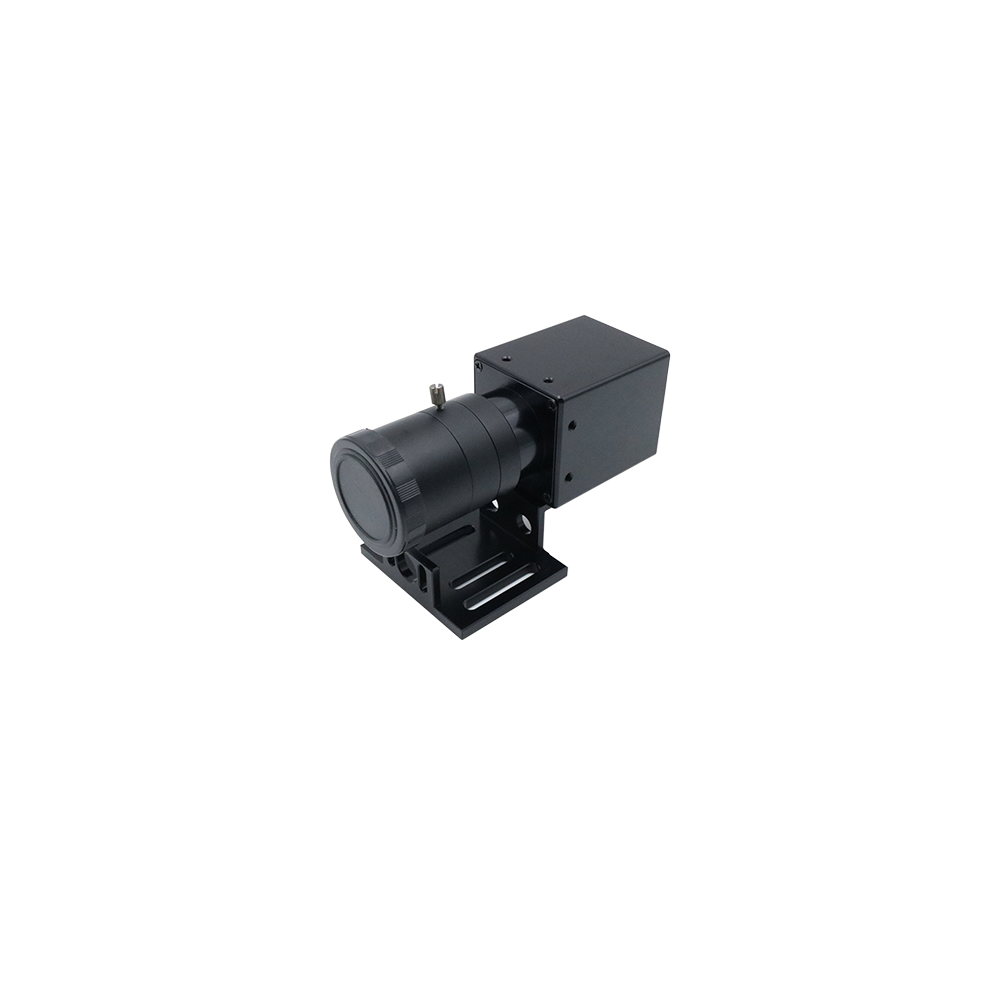

1. 1.3-megapixel or 5-megapixel industrial high-speed camera, with free choice of USB interface and gigabit network interface.


2. Camera positioning, automatic recognition template alignment and cutting.


3. Customizable camera recognition effective area.


4. Support multi template recognition, up to 100 different templates can work simultaneously.


5. Support graphic stitching for easy recognition and cutting of large graphics.


6. Supports mark cutting function, which can be applied to cutting in the advertising industry, generating templates and mark point coordinates automatically with one click.


7. Support frame cutting function, software integration with photo studio software such as Photocopying Pass, Huicai, Ouke, etc.


8. Adjustable brightness LED light source, with optional light source colors.


9. Support edge finding and cutting function.
