ZY4142G-130

ZY4142G-130

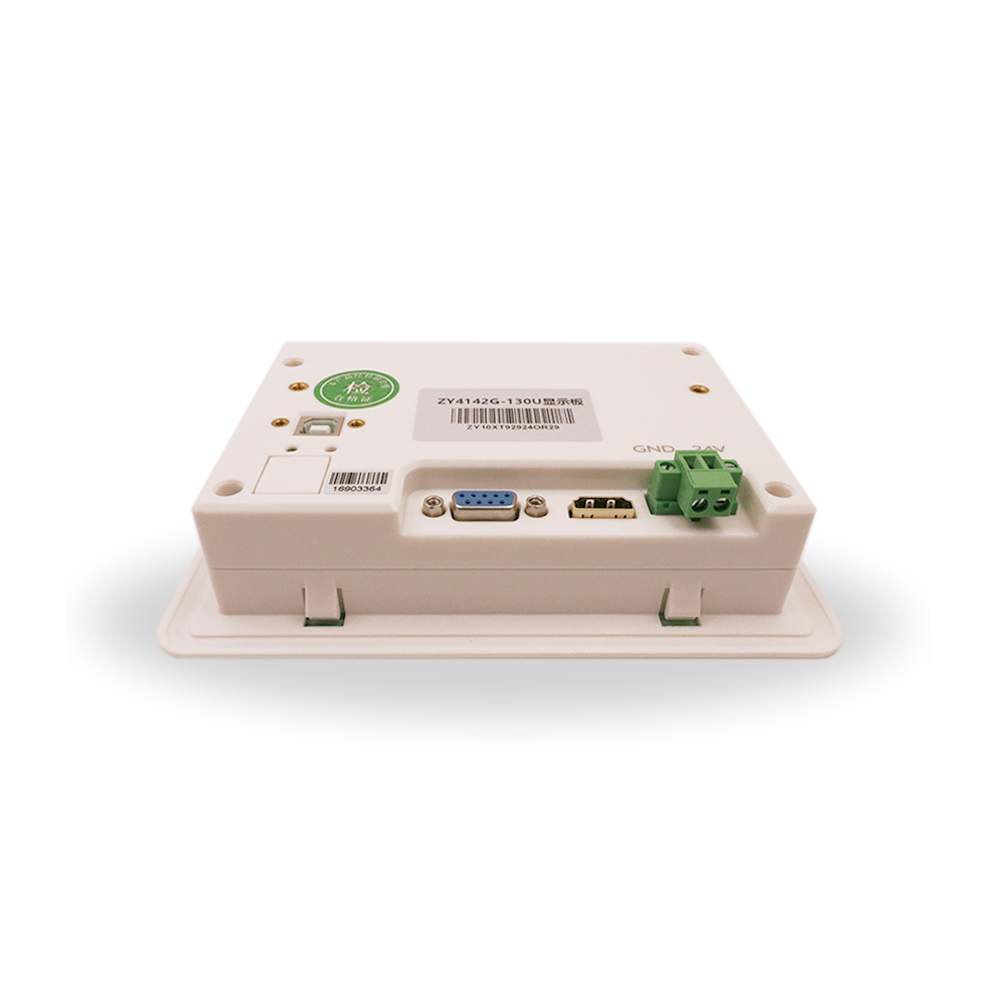

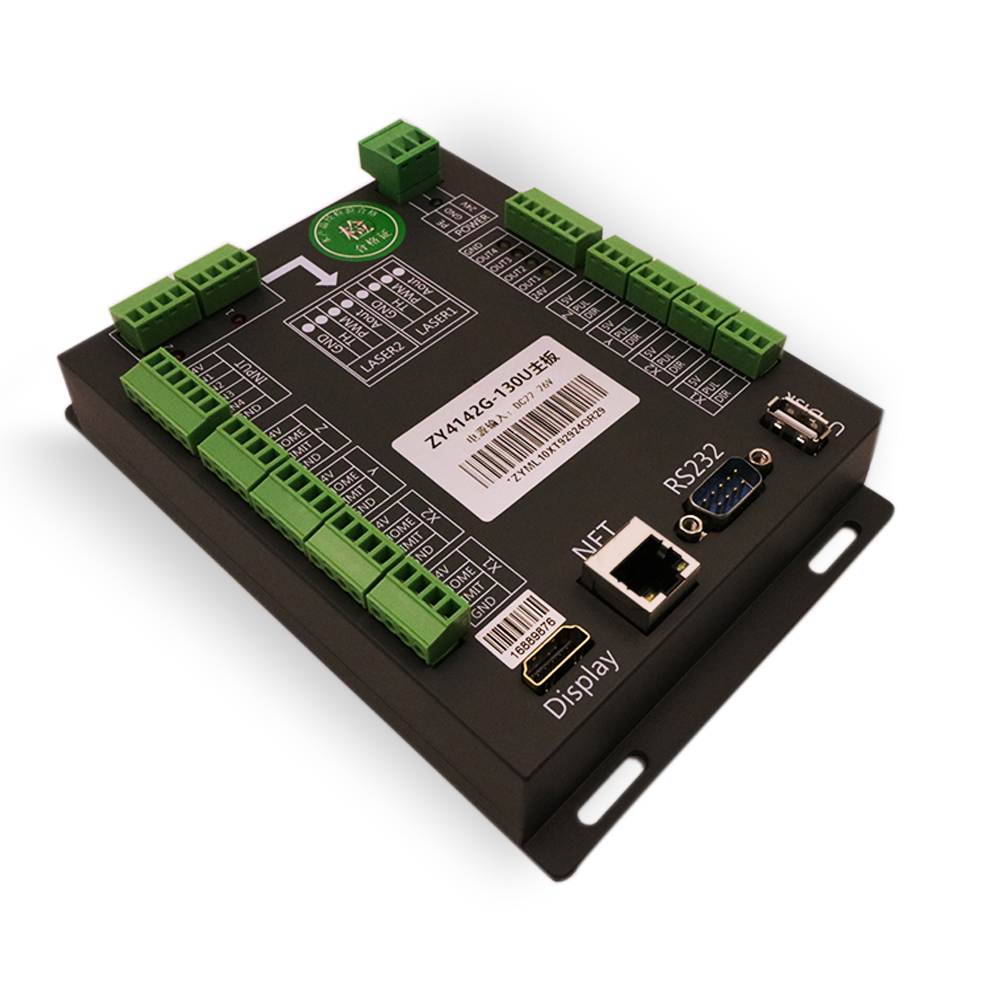

ZY4142G-130 is an economical visual positioning laser cutting control system equipped with a 1.3 megapixel industrial camera, supporting 4-axis control, suitable for small and medium-sized laser cutting and engraving applications.


收藏
  • Parameter
  • FUNCTION

modelZY4142G-130
Hardware
Camera (pixels)1.3 million/5 million

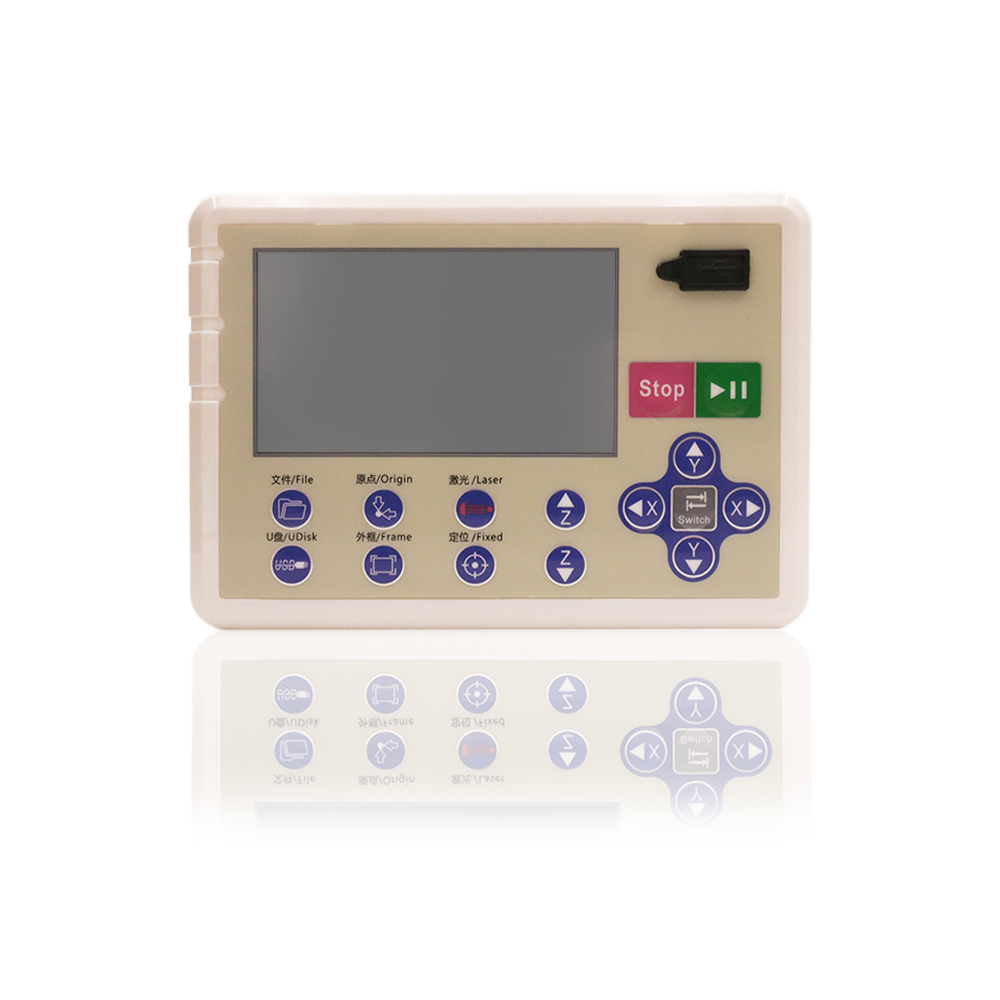

Screen4.3 inches
Universal output port4
Universal input port6
Number of supported platforms1 piece
Control the number of axes4-axis
Support laser count2
Disk space (MB)500
Data transmission methodNetwork communication, USB flash drive
Support laserRF laser, CO2 glass tube laser
Function
machine vision√
Input/output diagnosis√
Counting function√
Processing graphics, trajectory display√
Glue dispensing function√
Z-axis autofocus function√
Power off and continuous switching function√
Automatic feeding, synchronous feeding√
Ultra large format cutting√
Rotating carving and cutting function√
Mirror Cut√
Multilingual√
Offline pause allows for movement, shooting, and modification of layer parameters such as power and speed√
Multi head mutual shift√
Processing blowing, light blowing, blowing by layer√
Layer pause√
IO configuration√
remote control√
File SearchI won't support it
Cutting machine mode, cutting ribbon√
Single/double belt processing√
Dual platform processing×

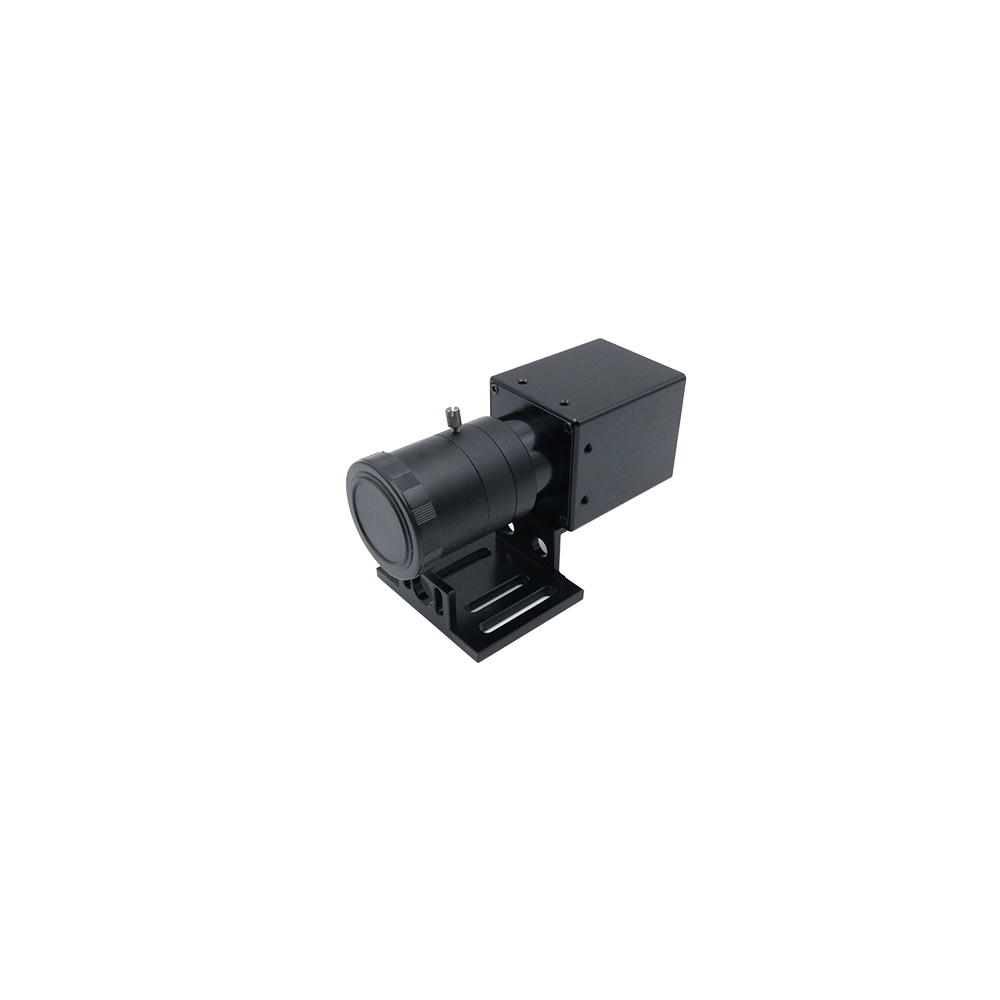

1. 1.3-megapixel or 5-megapixel industrial high-speed camera, with free choice of USB interface and gigabit network interface.


2. Camera positioning, automatic recognition template alignment and cutting.


3. Customizable camera recognition effective area.


4. Support multi template recognition, up to 100 different templates can work simultaneously.


5. Support graphic stitching for easy recognition and cutting of large graphics.


6. Supports mark cutting function, which can be applied to cutting in the advertising industry, generating templates and mark point coordinates automatically with one click.


7. Support frame cutting function, software integration with photo studio software such as Photocopying Pass, Huicai, Ouke, etc.


8. Adjustable brightness LED light source, with optional light source colors.


9. Support edge finding and cutting function.
