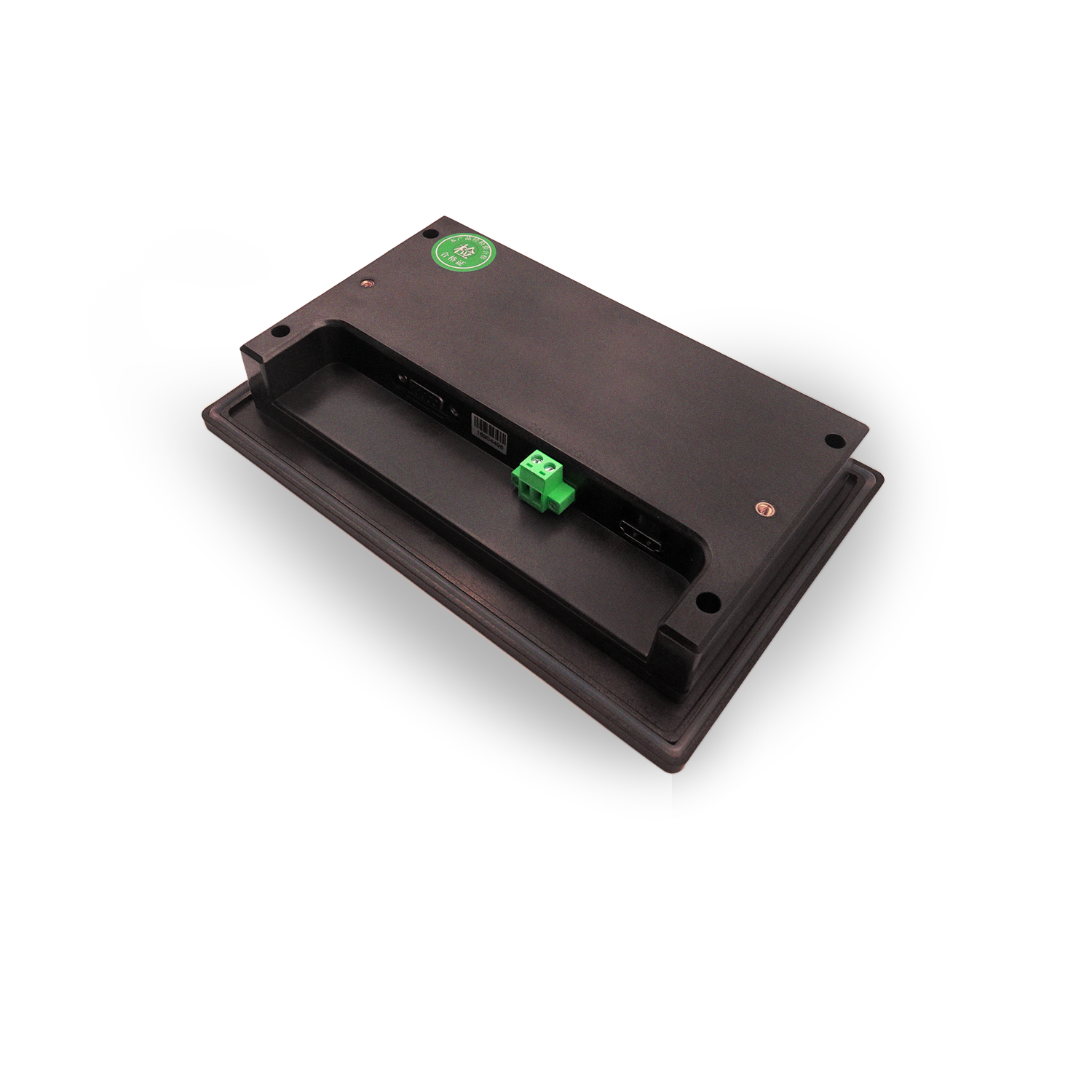

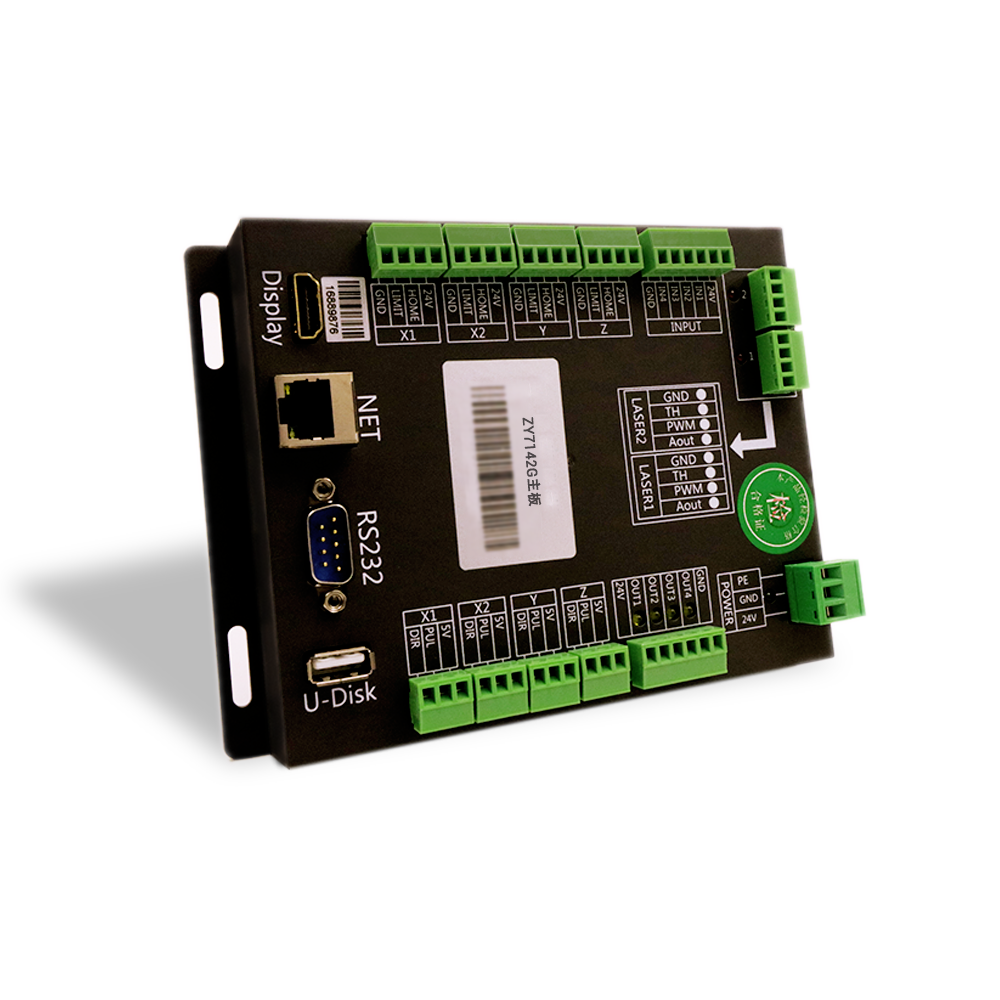

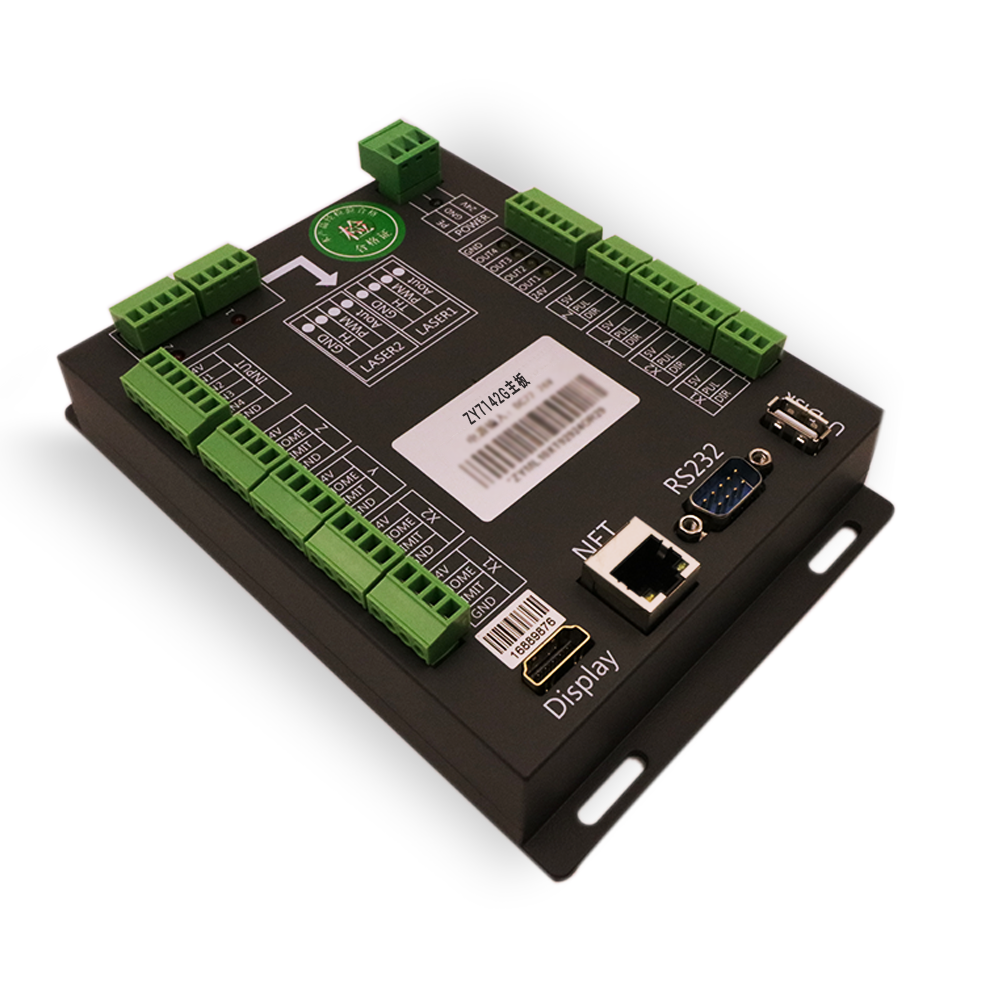

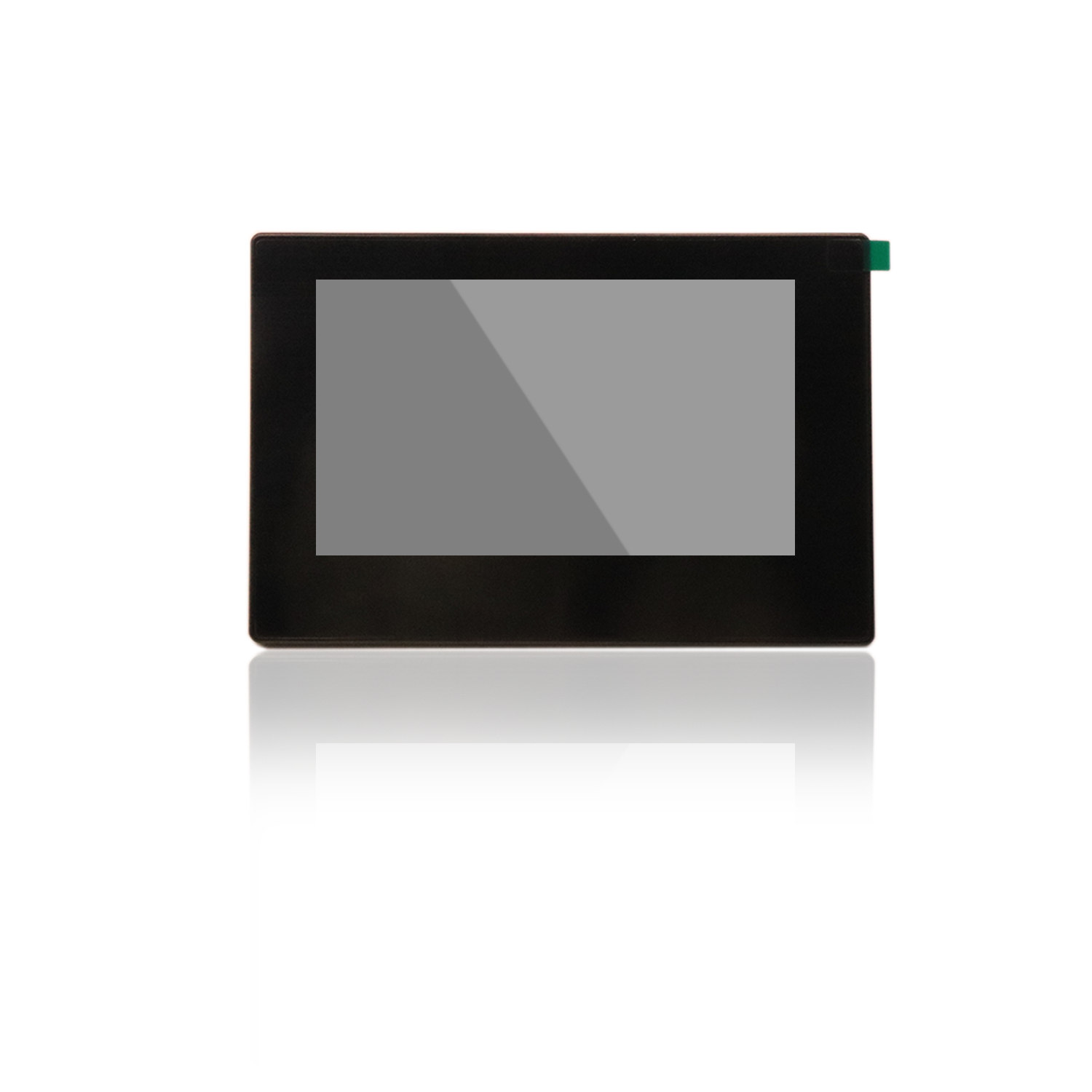

ZY7142GZY7142G is a high-performance laser cutting control system that supports 4-axis control and is equipped with a 7-inch touch screen. It is suitable for various laser types, including RF lasers and CO2 glass tube lasers.
收藏
1. Supports multiple file formats such as PLT, AI, DXF, JPG, JPEG, etc. 2. It has functions such as smoothing graphics, filtering duplicate lines, and closing graphics. 3. Multiple path planning, can be processed by layer, and the starting point and direction of processing can be freely determined. 4. The software can simulate machining and estimate machining time. 5. It has good speed planning and can modify processing speed and power on the panel. 6. Equipped with an intelligent feeding system that can automatically correct deviations to ensure the cutting quality at the joint. 7. Supports processing of oversized graphics and can automatically perform split screen processing on graphics. 8. Equipped with intelligent interruption function, ensuring the minimum number of graphic interruptions and guaranteeing processing quality. 9. No layout restrictions, can support horizontal and vertical split screen processing. 10. Support multi head processing, capable of intelligent split processing and mirror processing. 11. It has intelligent layout function, which can layout according to the spacing between rows and columns, and display the size of layout graphics in real time. It can also insert corner materials to save materials. 12. Equipment that supports both single belt and double belt multi head mutual movement modes. 13. Convenient and simple projection calibration operation, completing projection calibration quickly. 14. High precision projection correction algorithm with an error as low as one pixel, precise alignment, and reduced material waste. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
