ZY7050-2000

ZY7050-2000

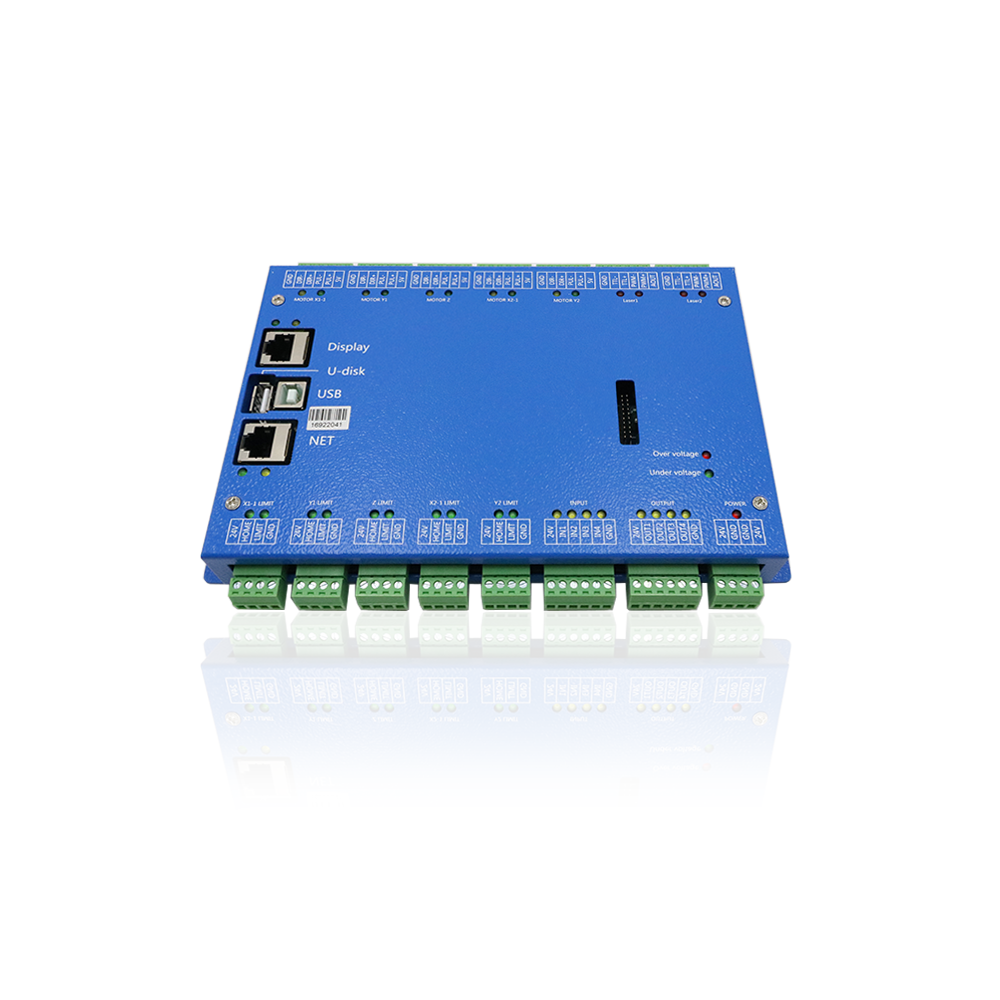

ZY7050-2000 is a powerful visual copying, typesetting, and cutting control system, equipped with a 20 megapixel camera and supporting 7-axis control, designed specifically for cutting tasks of complex graphics.


收藏
  • Parameter
  • FUNCTION

modelZY7050-2000
Hardware
Camera (pixels)20 million/24 million

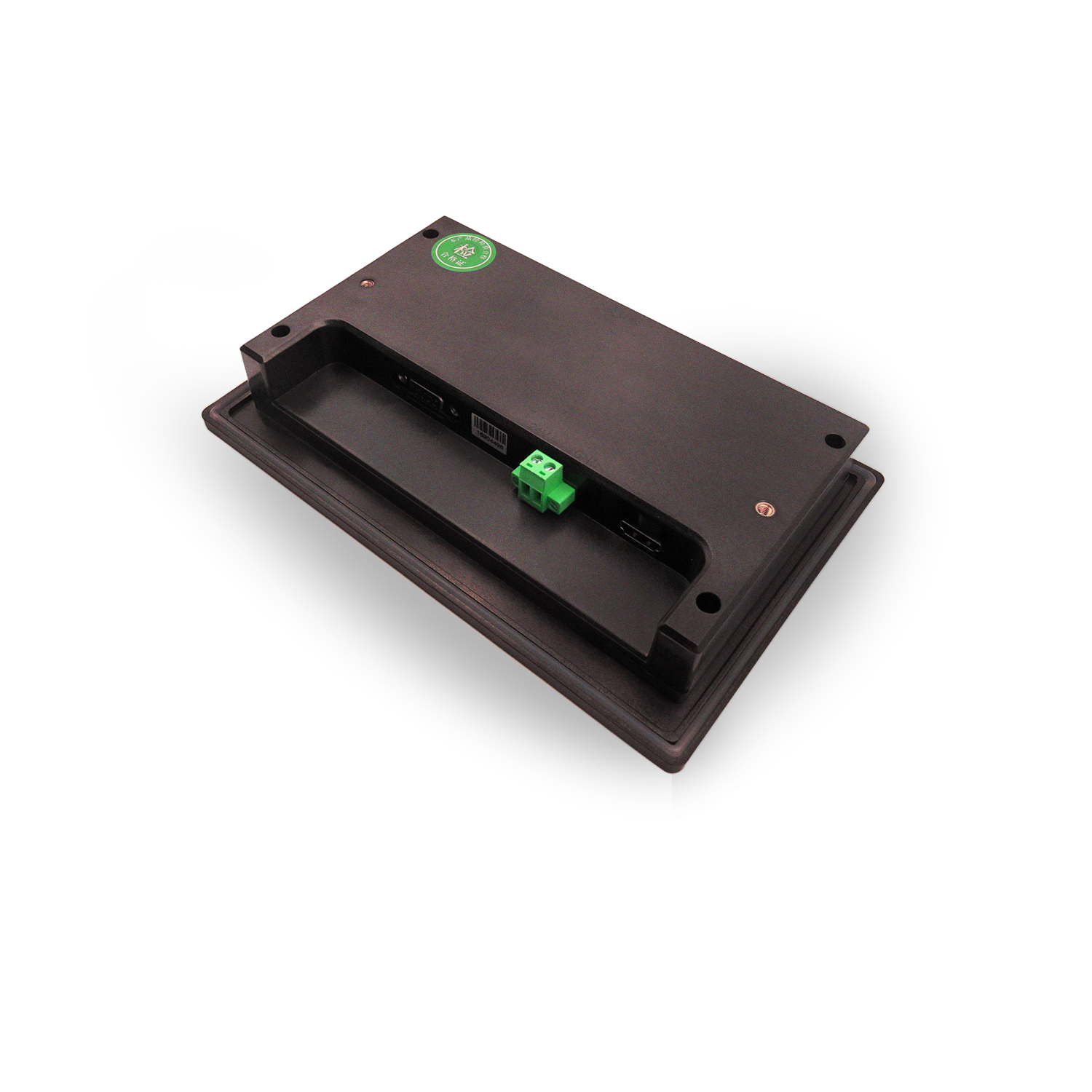

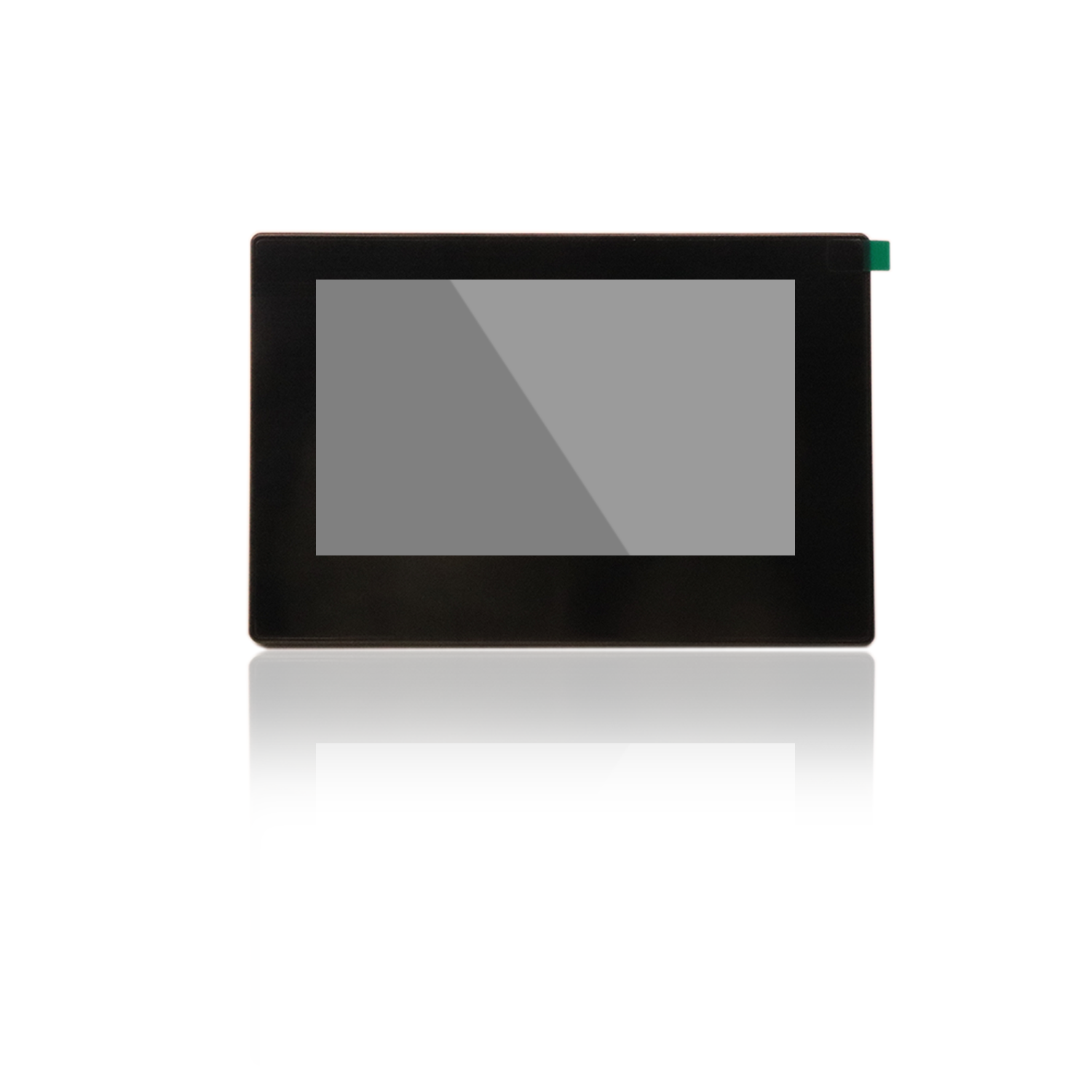

Screen7 inches
Universal output port4
Universal input port4
Number of supported platforms2
Controlled Axes7 axes
Support laser count4
Disk space (MB)one hundred and twenty-eight
Data transmission methodNetwork communication, USB flash drive
Support laserRF laser, CO2 glass tube laser
Function
machine vision√
Input/output diagnosis×
Counting function√
Processing graphics, trajectory display√
Glue dispensing function√
Z-axis autofocus function√
Power off and continuous switching function√
Automatic feeding, synchronous feeding√
Ultra large format cutting√
Rotating carving and cutting function√
Mirror Cut√
Multilingual√
Offline pause allows for movement, shooting, and modification of layer parameters such as power and speedPartial support
Partially supported
Partially supported
Multi head mutual shift√
Processing blowing, light blowing,√
Blow air by layer√
Layer pause√
IO configuration×
remote control√
File Search×
Cutting machine mode, cutting ribbon×
Single/double belt processing√
Dual platform processing√

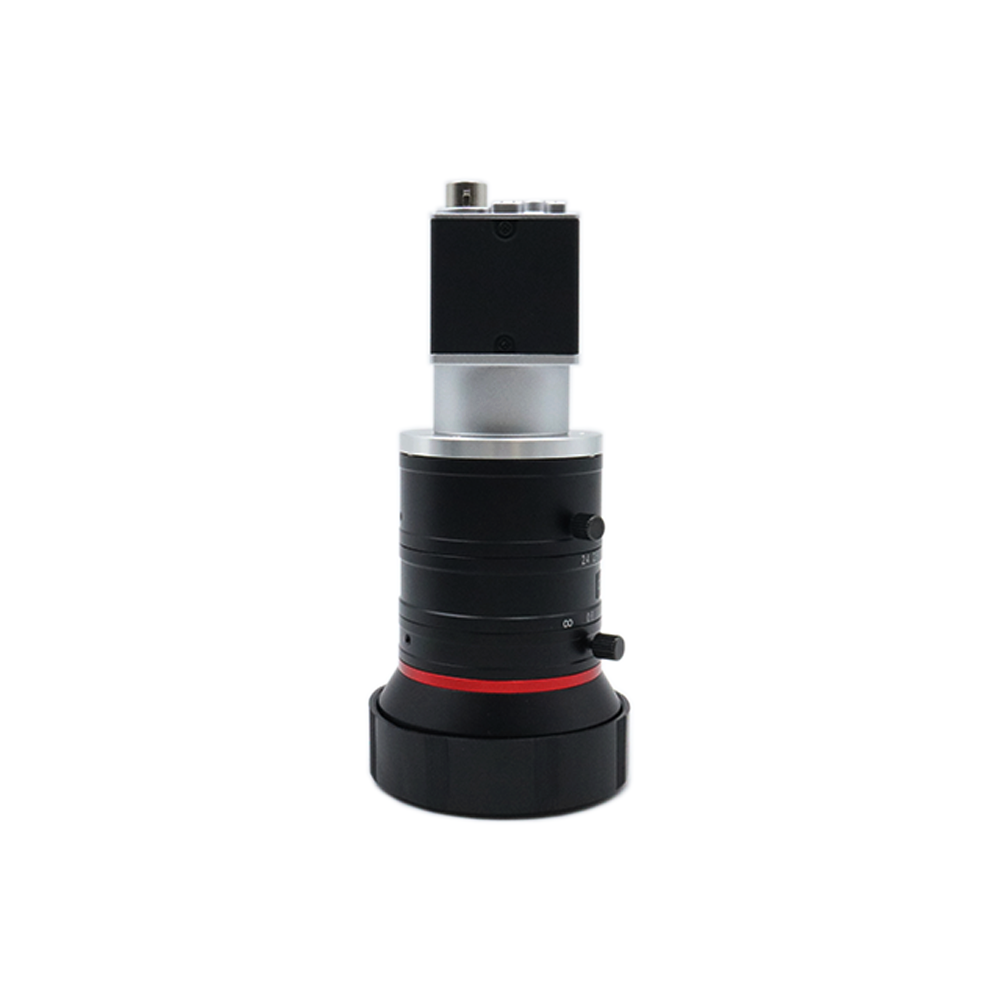

1. Optional 24 megapixel Canon high-performance DSLR camera or 20 megapixel industrial camera.


2. Compatible with 7020 laser card, 7050 laser card, and vibrating knife card.


3. Automatically extract the outline of the graphic and the software will automatically layout it.


4. Support automatic defect avoidance, support sample hole layout, and support collinear layout.


5. Compared to traditional typesetting software, it is easier to operate and several times more efficient.


6. Can be equipped with a small vision machine, pre software layout, and small vision for Mark point cutting.
