ZJS716

1. Supports offline working mode and 16GB storage space.

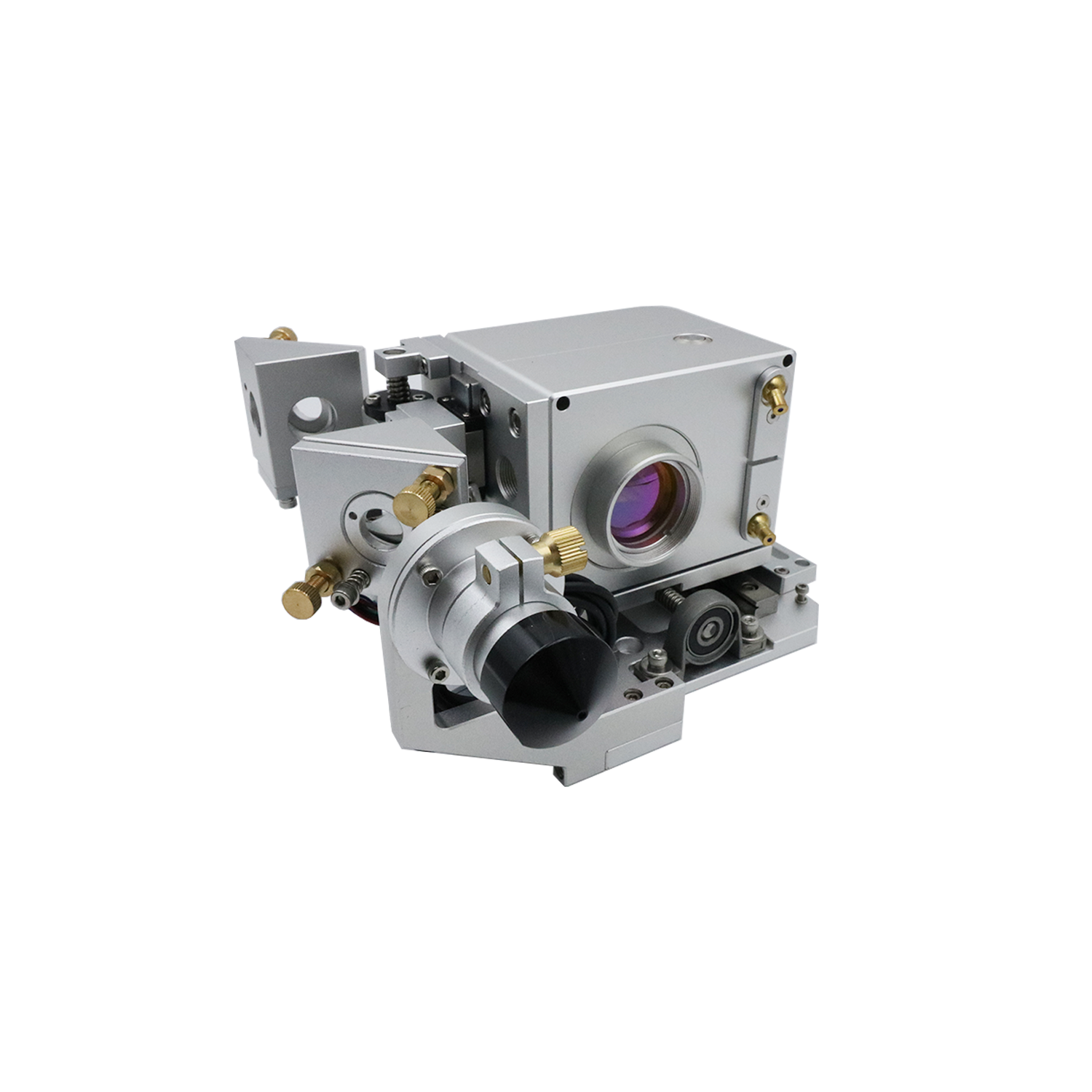

2. Carving and cutting integrated machine with cutting conversion device, supporting both the cutting head function of ordinary laser machines and the galvanometer processing mode. It can automatically switch processing modes by layer to meet various processing needs.

3. The high-speed processing method of large area continuous light improves production efficiency,

4. It can be equipped with a galvanometer cutting conversion head with laser spot sizes of 10mm, 16mm, and 20mm.

5. Adopting XY rack and mirror dual flight linkage, large format graphics can be completed in one go to improve product quality.

6. Equipped with a magnetic grid ruler with an accuracy of 0.005um.

7. Mirror closed-loop control, high precision, good cutting effect.

8. Automatic production can be achieved through the feeding device.

9. Rich communication interfaces, which can be controlled through USB, network, and remote control,

10. High precision camera automatic mirror correction, easy to operate.

11. It can achieve multi-layer processing, carving, cutting, and meet various process requirements.

12.6 axis control, with a maximum pulse output frequency of 4M.

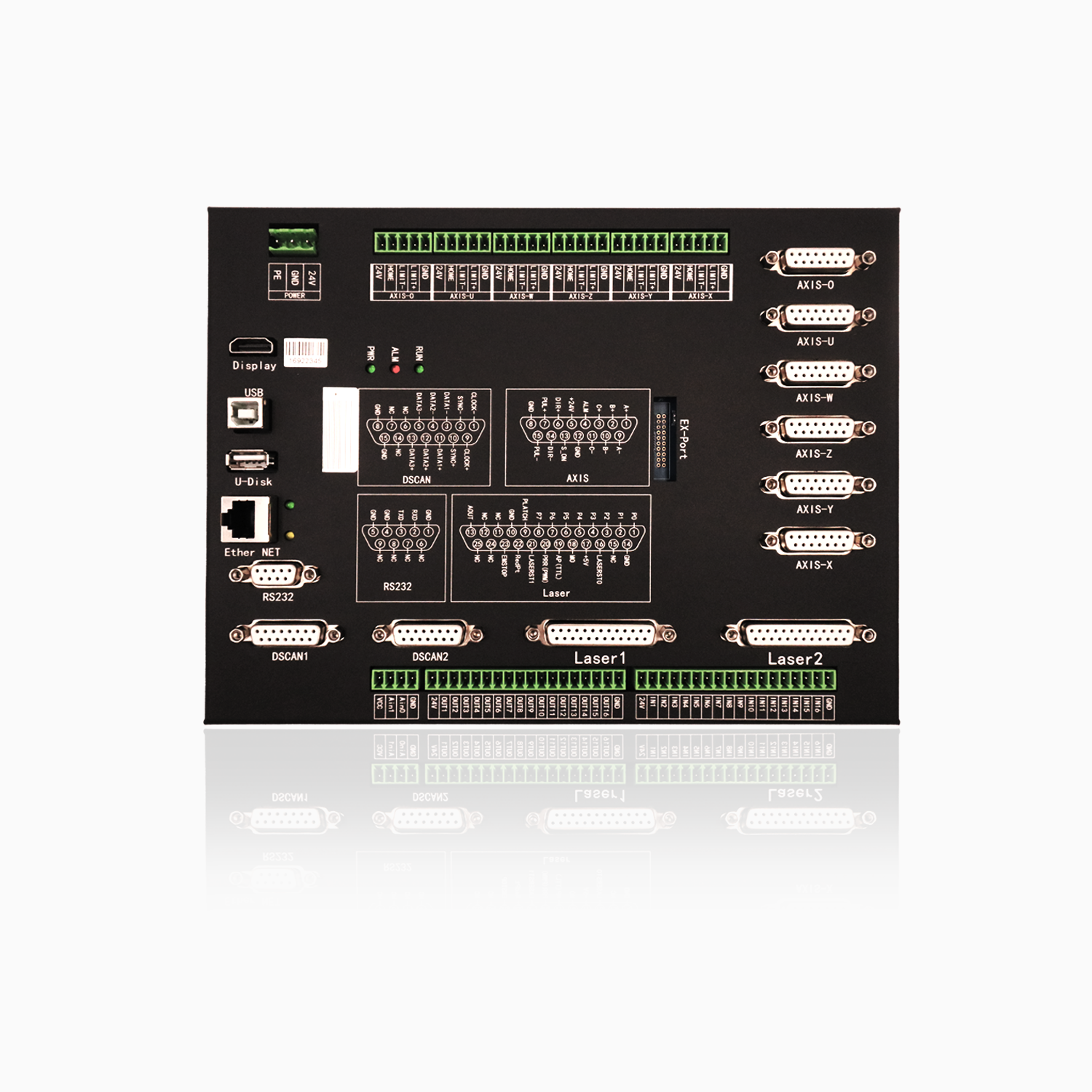

13. Rich input and output ports, 16 universal outputs, 16 universal inputs.

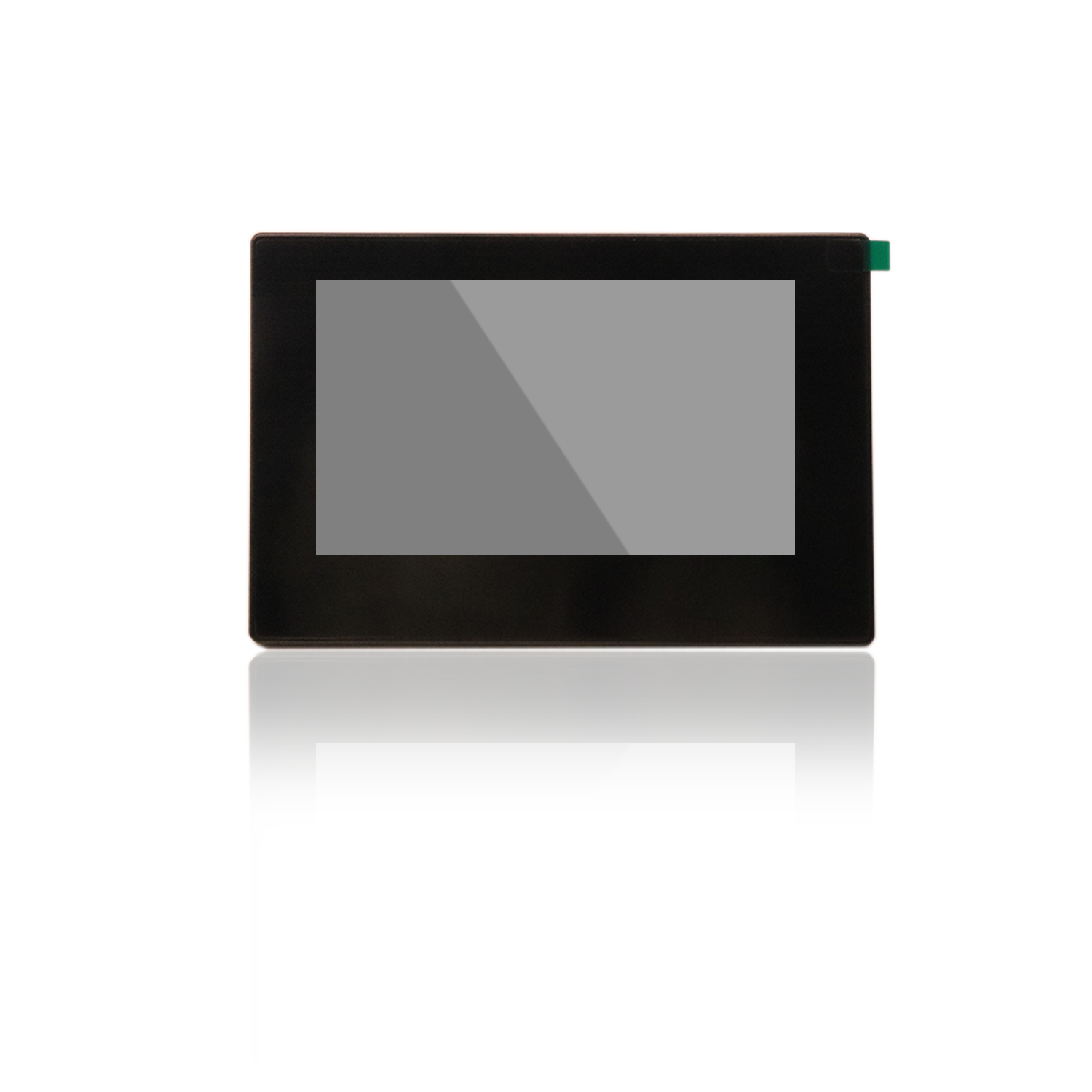

14. The software and human-machine interface are simple and elegant, easy to use, and have no threshold for operation.
