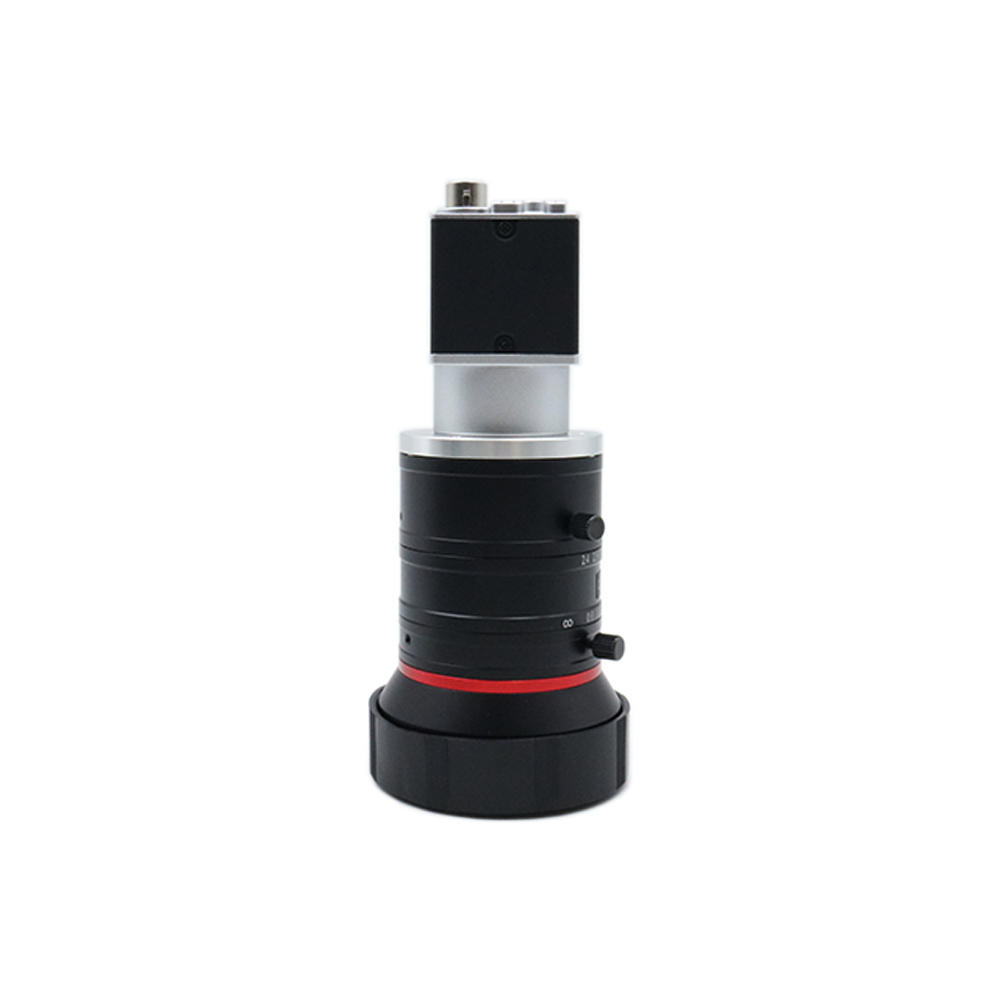

ZY7164G-2000ZY7164G-2000 is a high-precision panoramic vision laser cutting control system equipped with a 20 megapixel high-performance camera, supporting 6-axis control, suitable for large format, high-precision laser cutting tasks.
收藏
1. There are various types of cameras, and according to different situations, Canon high-performance DSLR cameras with 18 million and 24 million pixels or industrial cameras with 12 million to 20 million pixels can be selected. 2. High efficiency, one-time matching cutting of full width, supporting simultaneous processing of edge finding and template matching. 3. Automatically extract the outline of the shape, and the software generates cutting lines automatically. 4. Multiple edge search modes, including black edge search, center line search, lace lace, lace wave search, etc. 5. Supports multiple image channels, image morphology, and morphological operations. 6. Multiple feeding modes, YZ synchronous feeding, automatic feeding, intelligent feeding, closed feeding to designated positions, etc. 7. Powerful template, supports multi template recognition, supports template deformation matching, supports hole cutting, and matches different templates by region.
